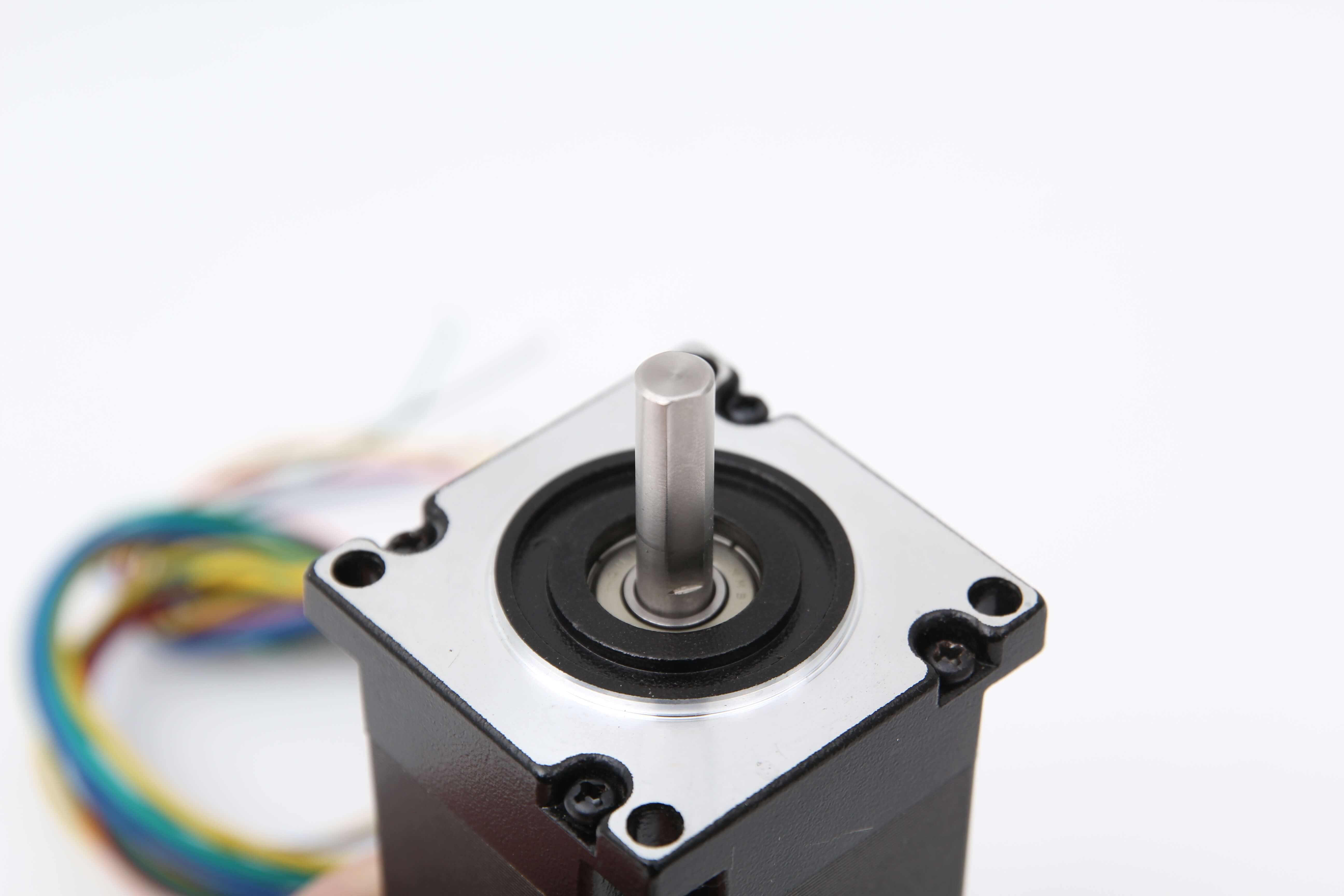

Brushless dc servo motorBrushless dcstepping motor

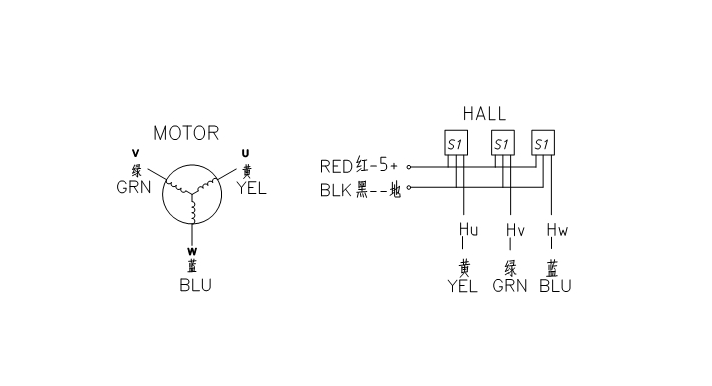

| Winding Type | Star |
| electrical degree | 120℃ electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin.500VC DC |
| Dielectric Strength | 700V AC 1 minute |
| Model | 57BZF76-240 | 57BZF96-240 | 57BZF116-340 | 57BZF116-440 |
| Number of Poles | 8 | |||
| Number of Phases | 3 | |||
| Nominal voltage VDC | 24 | 24 | 36 | 48 |
| Rated speed RPM | 3000 | |||
| Rated Torque N-m | 0.3 | 0.45 | 0.6 | 0.6 |
| RatedCurrent Amps | 5.3 | 7.9 | 7 | 5.3 |
| OutputPower Watts | 94 | 141 | 188 | 188 |
| Peak Tourque N-m | 0.9 | 1.35 | 1.8 | 1.8 |
| Peak Current Amps | 15.9 | 23.7 | 21 | 16 |
| Torqueconstant N-m/A | 0.057 | 0.057 | 0.086 | 0.114 |
| BackEMF V/kRPM | 4.2 | 4.2 | 6.3 | 8.4 |
| Rotor inertia g·cm² | 100 | 150 | 200 | 200 |

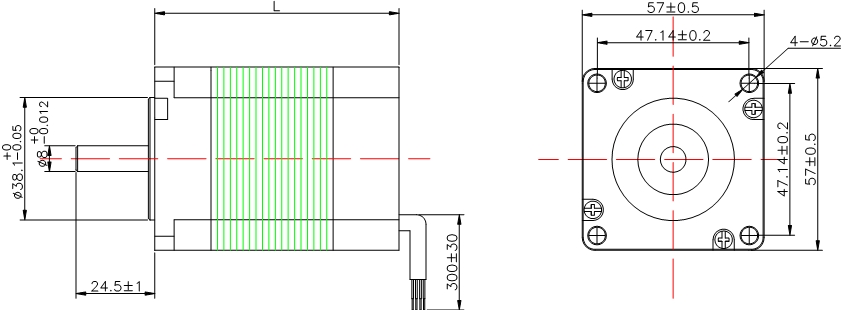

| Body Length (L) mm | 76 | 96 | 116 | 116 |
| Mass kg | 0.65 | 0.95 | 1.25 | 1.25 |
Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near, or at, a stalled condition will result in motor damaged.
Note: We can also manufacture products according to customer's requireme
