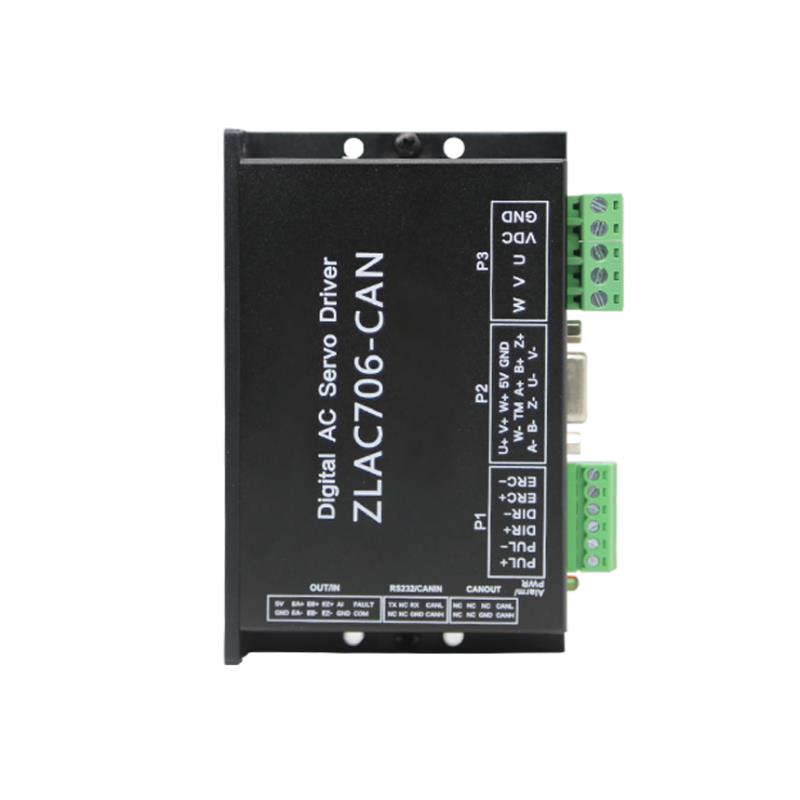

An overview,
CPN4806 is a vector control low cost full closed-loop full digital servo driver designed and manufactured by DSP.Includes three feedback loops (position loop, speed loop and current loop).Can work in position, speed and torque mode: suitable for brushless dc servo motor with drive voltage up to 80VDC and power under 400W.
Second, the characteristics of
There are multiple input modes in the l position control mode.
1. Pulse + direction
2. Pulse + reverse direction
3. Double pulse
4. A/B phase
5. Analog input
6. PWM
7. The communication
8. The program
There are multiple input modes in the speed control mode
1. Die in (0-10v)+ direction
2. Die in (+/ -10v) 50%
3. The PWM + direction
4. The PWM 50%
5. Communication
6. Program
There are various input modes in torque control mode
1. Die in + direction
2. Mold into 50%
3. The PWM + direction
4. The PWM 50%
5. Communication
6. Program
L optical isolation servo reset input interface ERC
1. Optical isolation fault alarm output interface ALM
2. Current loop bandwidth :(-3db) 2KHz (typical value)
3. Speed ring bandwidth: 500Hz (typical value)
4. Bandwidth of position loop: 200Hz (typical value)
5. Motor regular ac encoder input interface: differential input (26LS32)
6. Parameters can be downloaded from PC or text display through RS232C interface
7. Overcurrent, I2T, overvoltage, undervoltage, overheating, overspeed and overdifference protection
8. Green light means run, red light means protect or offline
Port description
Control signal input/output port X1
Terminals no. | symbol | name | explanation |
1 | PUL+ | Pulse positive input | High effective |
2 | PUL- | Negative pulse input | Low effective |
3 | DIR+ | Positive directional input | High effective |
4 | DIR- | Negative directional input | Low effective |
5 | ERC+ | Servo reset positive input | High effective |
6 | ERC- | Servo reset negative input | Low effective |
Encoder feedback signal input port X2 (D15 female head)
Terminals no. | symbol | name | explanation |
1 | GND | Power out | |
2 | VCC | The output power | 50 ma |
3 | PW+ | Positive input of magnetic pole W phase | Single-ended connection |
4 | PV+ | V phase positive input | Single-ended connection |
5 | PU+ | Positive input of magnetic pole U phase | Single-ended connection |
6 | PZ+ | Encoder Z phase positive input | |
7 | PB+ | Encoder B phase positive input | |
8 | PA+ | Encoder A phase positive input | |
9 | NC | ||
10 | NC | ||
11 | NC | ||
12 | NC | ||
13 | PZ- | Encoder Z phase negative input | |
14 | PB- | Encoder B phase negative input | |
15 | PA- | Encoder A phase negative input |
Power port X3
Terminals no. | symbol | name | explanation |
1 | Motor phase line | W | The motor W end |
2 | V | The motor V end | |
3 | U | The motor U end | |
4 | Power input | VDC | Input dc power is positive |
5 | GND | Input power |
pin | Signal definition |
2 | RX |
3 | GND |
5 | TX |
6 | VCC |
Iv. Parameter adjustment and setting of the servo system
The parameters of the servo driver are set and adjusted by PremTurner, a special communication control software. PremTuner software has the functions of system configuration, PID parameter adjustment, waveform acquisition, motion control and so on.Please refer to the "software operation manual" for details.
V. technical indicators
9. Input dc voltage range: 20~80V(typical value)
10. 200W continuous output power
11. Continuous output current 6A 32KHz PWM
12. Overload output current 18A (3 seconds)
13. To protect
The peak value of overcurrent action is 30A 10%
Overload I2t current action value 300% 5S
Overheating action value of 80 ℃
The overvoltage action value is 65V
The action value of under-voltage voltage is 18V
14. Maximum pulse input frequency: 300K
15. Default communication rate: 9.6Kbps (additional conversion interface is required)
16. Use environment
Occasion: avoid dust, oil mist and corrosive gas as far as possible
Working temperature: 0 ~ + 50 ℃
Storage temperature: - 20 ℃ ~ + 80 ℃
Humidity: 40 ~ 90% RH
Cooling mode: natural cooling or forced air cooling
17. Overall dimensions 118 76 35
18. The weight is about 200g
Six, control signal wiring

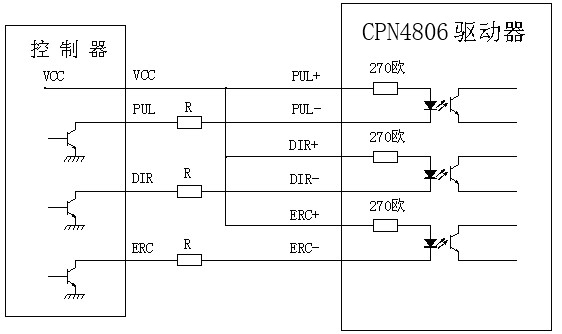

When single terminal connection is adopted for control signal, the wiring diagram is shown as follows:
Note: when VCC is 5V, R short-circuit;
When VCC is 12V, R is 1K and the resistance is greater than 0.125w.
When VCC is 24V, R is 2K and the resistance is greater than 0.125w.
The resistance must be connected to the control signal.

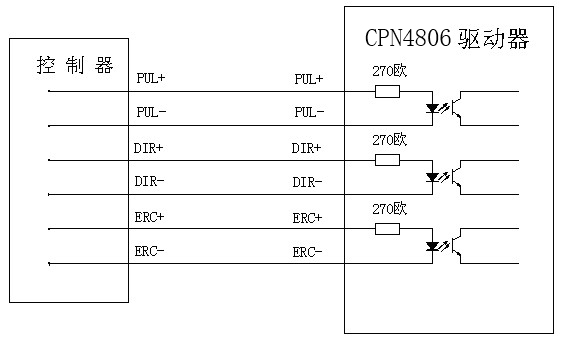

When the control signal adopts differential wiring mode, the wiring diagram is shown as follows:
Vii. Installation size
Viii. Wiring diagram

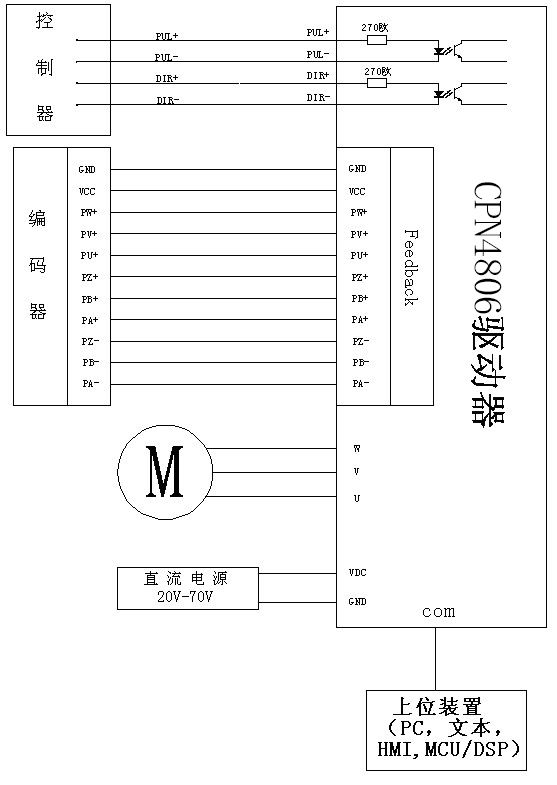

Typical wiring diagram of the servo system is as follows:
This driver can supply +5V, Max 80mA power to the encoder.Using four times frequency counting method, the encoder resolution multiplied by four is the number of pulses per revolution of the servo motor.
