| Insulation resistance | 100mohmMin.500VDC |
| Dielectric strength | 600VAC1minute |
| Environmental temperature for use | -20°~40° |
| Environmental humidity for use | ≤90%RH |
| Storage environment | -20°~+85°≤85%RH |
| Installation environment | Stay away from corrosion, flammable gases, oil droplets, dust, and altitude≤1000m |
Model | 060AC200 | 060AC200 | 060AC400 | 060AC600 | |
Number of poles | 10 | ||||
Number of phases | 3 | ||||
Rated voltage VDC | 36 | 48 | |||
Rated speed rpm | 3000 | ||||
Torque N.m | 0.64 | 1.28 | 1.92 | ||
Rated current Amps | 7.5 | 5.5 | 11 | 17 | |
Rated power W | 200 | 400 | 600 | ||
Peak torque N.m | 1.92 | 1.92 | 3.84 | 5.76 | |
Peak current Amps | 22.5 | 16.5 | 33 | 51 | |
Torque constantN.m/A | 0.085 | 0.12 | 0.12 | 0.12 | |
EMF constant V/krpm | 7.2 | 9.6 | 9.6 | 9.6 | |
Moment of inertia Kg·cm² | 0.16(0.17) | 0.16(0.17) | 0.28(0.29) | 0.41(0.42) | |
Feedback device | Standard 2500PPR incremental magnetic encoder 1. Photoelectric encoder 2. Rotating Transformer Note: Multiple resolutions are available, with incremental and absolute value options | ||||
Protection grade | IP65 | ||||

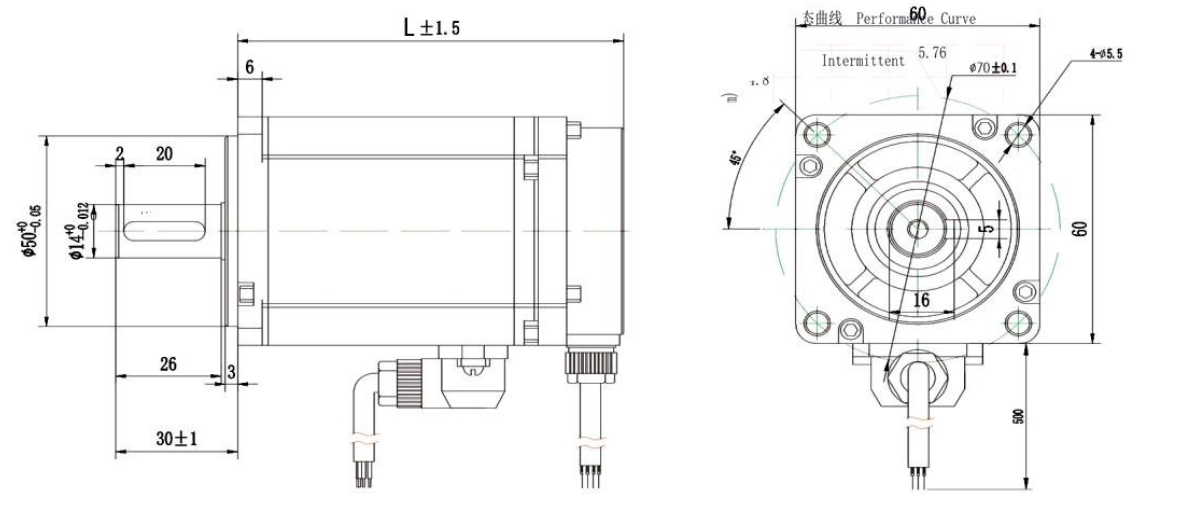

Motor length mm | 80(105) | 80(105) | 95(119) | 111(135) | |
Weight kg | 0.85(1.1) | 0.85(1.1) | 1.3（1.55） | 1.75（2） | |

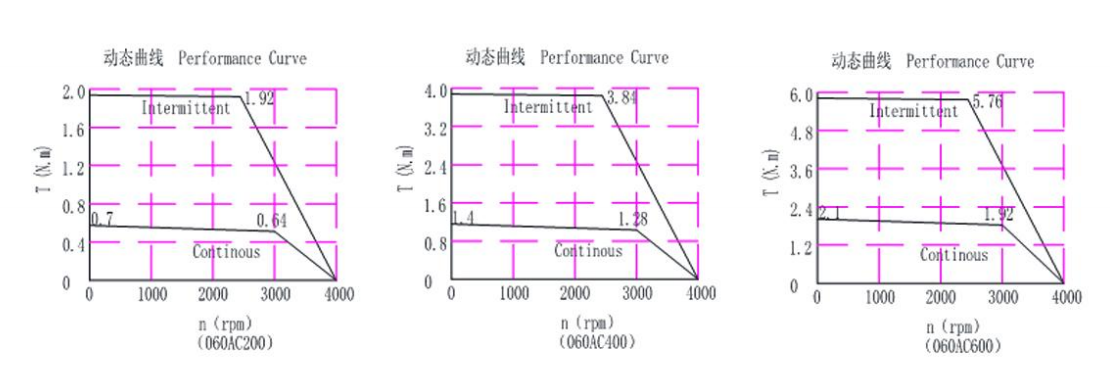

Performance Curve
