Brushless dc servo motorBrushless dcstepping motor

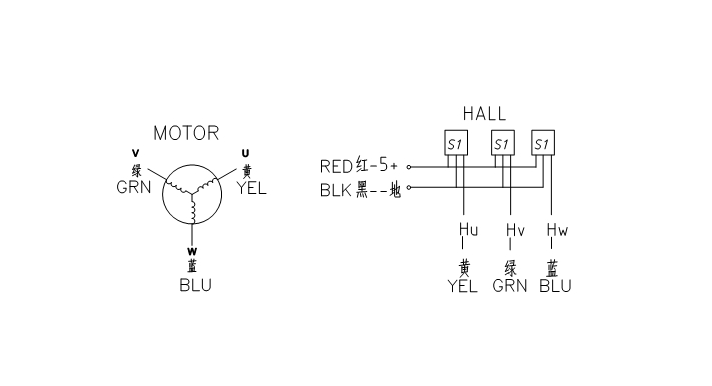

| Winding Type | Star |
| electrical degree | 120℃ electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin.500VC DC |
| Dielectric Strength | 700V AC 1 minute |
| Model | 110BL110-440 | 110BL110-640 | 110BL140-440 | 110BL140-640 | 110BL170-640 |
| Number of Poles | 8 | ||||
| Number of Phases | 3 | ||||
| Nominal voltage VDC | 48 | 310 | 48 | 310 | 310 |
| Rated speed RPM | 3000 | ||||
| Rated Torque N-m | 3.2 | 3.2 | 4.8 | 4.8 | 6.4 |
| RatedCurrent Amps | 28 | 4.1 | 42 | 6.5 | 8.2 |
| OutputPower Watts | 1000 | 1000 | 1500 | 1500 | 2000 |
| Peak Tourque N-m | 10 | 10 | 14.4 | 14.4 | 20 |
| Peak Current Amps | 84 | 13 | 126 | 19.5 | 25 |
| Torqueconstant N-m/A | 0.12 | 0.79 | 0.12 | 0.74 | 0.79 |
| BackEMF V/kRPM | 8.4 | 55 | 8.4 | 55 | 55 |
| Rotor inertia g·cm² | 3 | 3 | 4.5 | 4.5 | 6 |

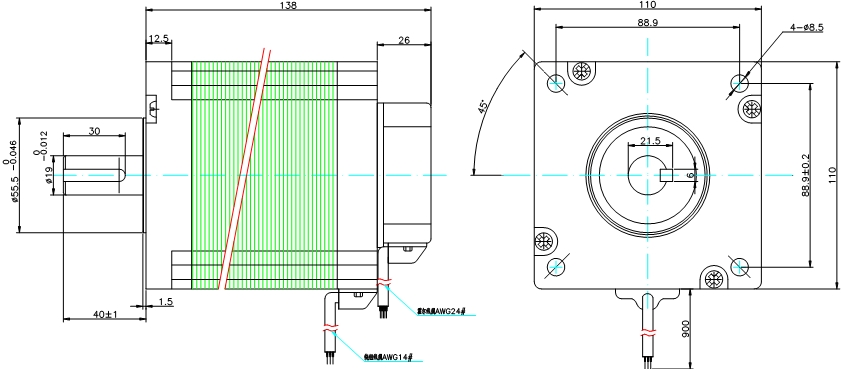

| Body Length (L) mm | 138 | 138 | 168 | 168 | 198 |
| Mass kg | 4.5 | 4.5 | 6 | 6 | 7 |
Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near, or at, a stalled condition will result in motor damaged.
Note: We can also manufacture products according to customer's requirements.
