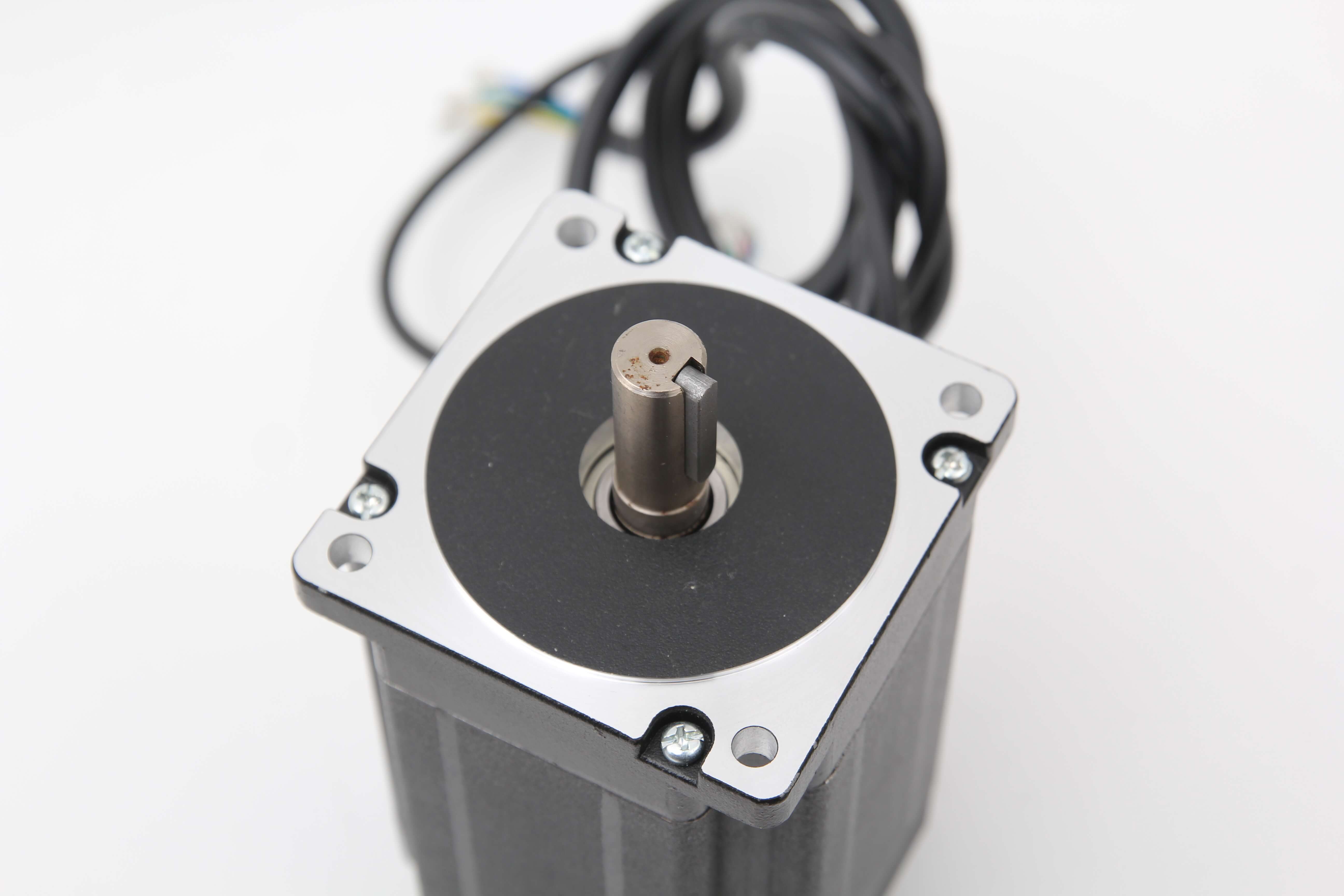

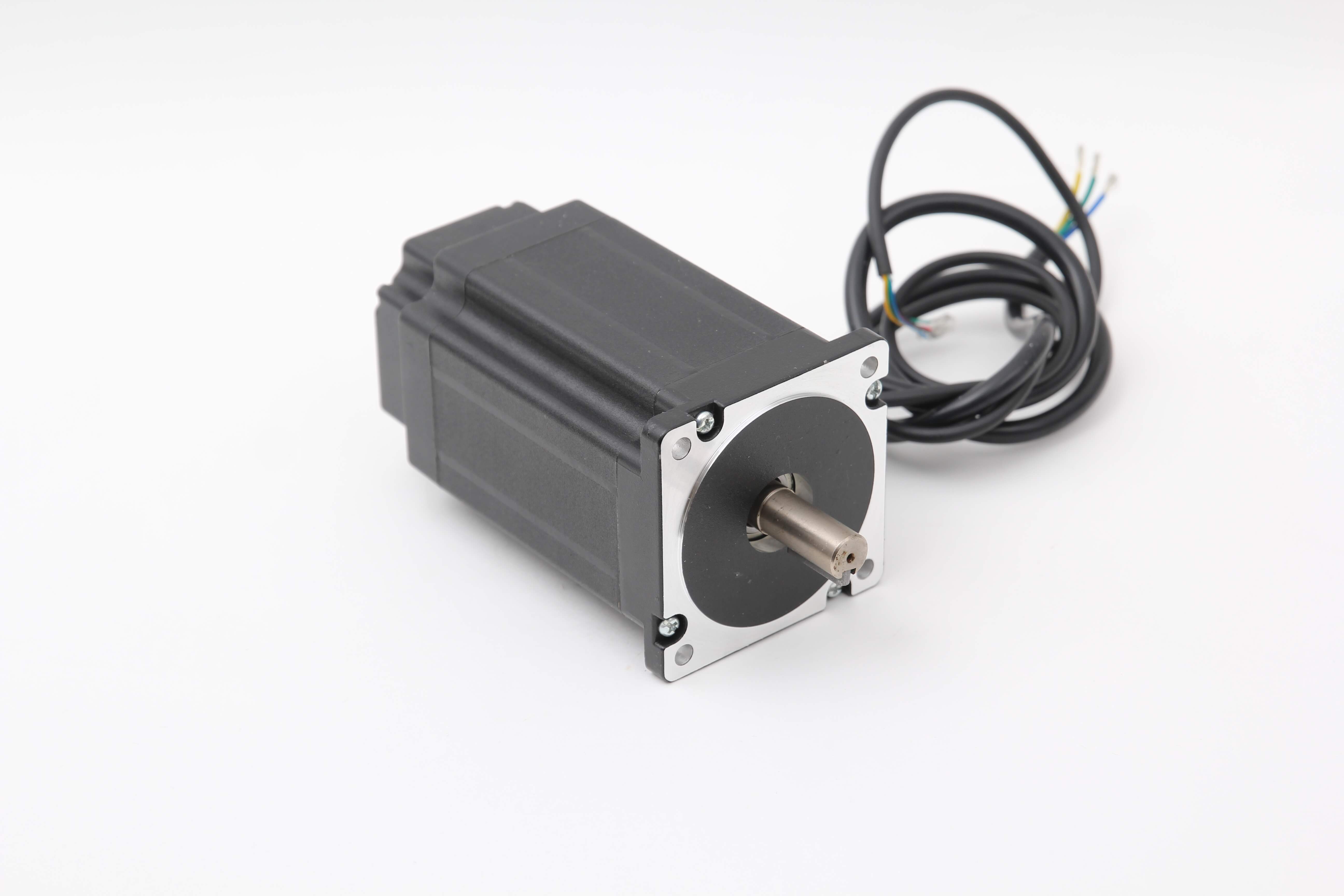

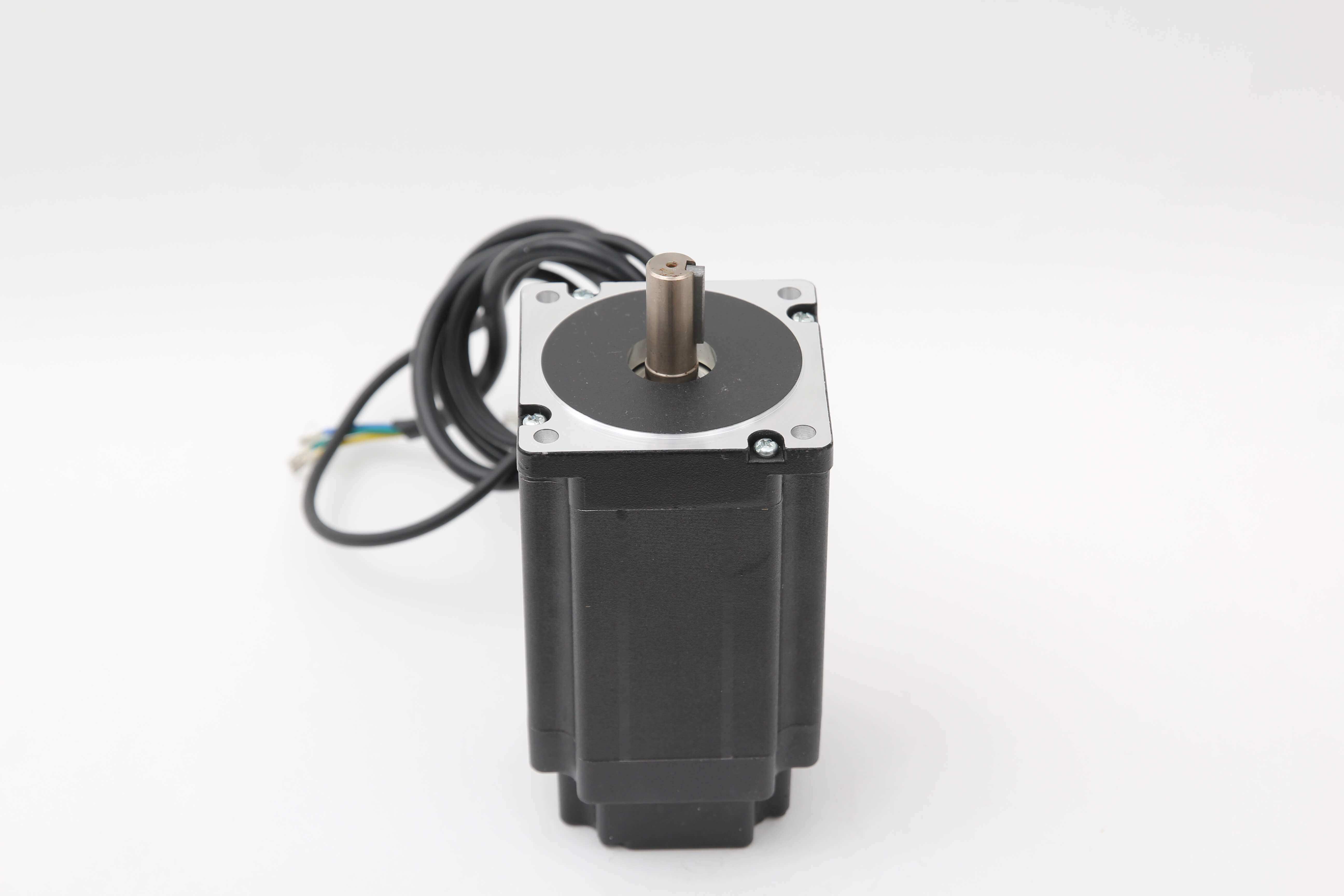

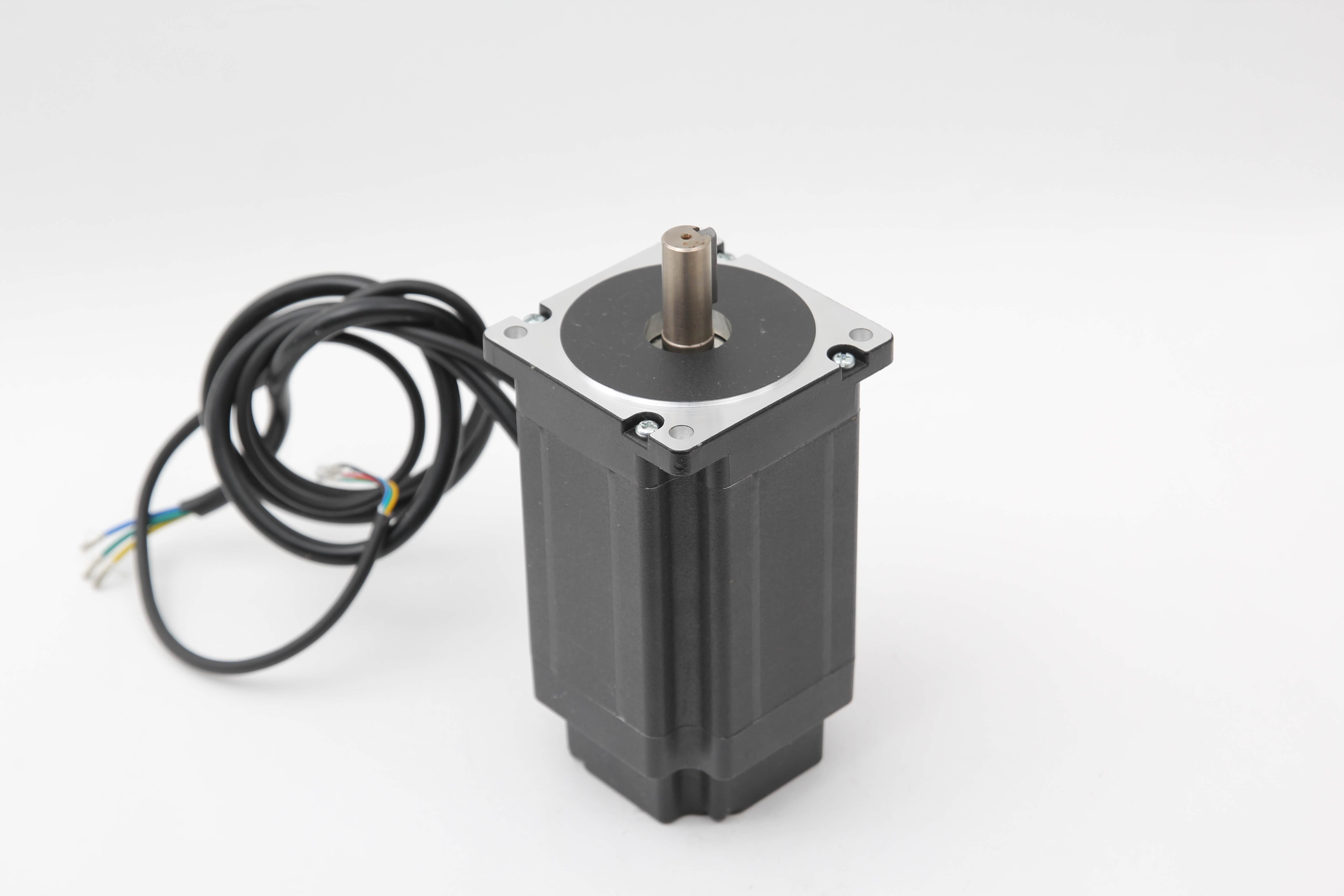

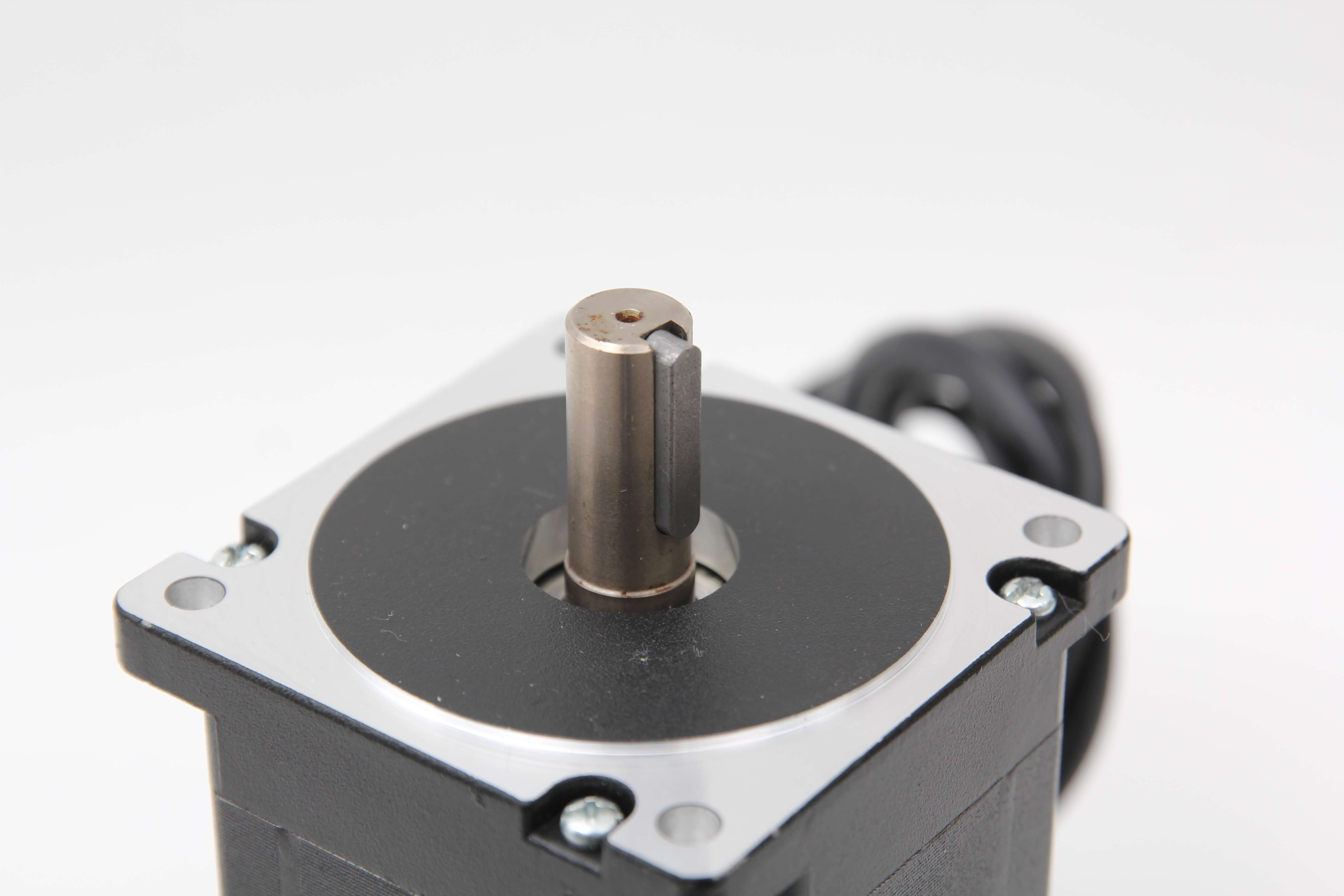

Brushless dc servo motorBrushless dcstepping motor
| Winding Type | Star |
| electrical degree | 120℃ electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin.500VC DC |
| Dielectric Strength | 700V AC 1 minute |
| Model | 86BL70-240-1000Z | 86BL70-440-1000Z | 86BL110-440-1000Z | 86BL125-440-1000Z |
| Number of Poles | 8 | |||
| Number of Phases | 3 | |||
| Nominal voltage VDC | 24 | 48 | 48 | 48 |
| Rated speed RPM | 3000 | |||
| Rated Torque N-m | 0.8 | 0.8 | 1.6 | 2.4 |
| RatedCurrent Amps | 14 | 7 | 14 | 21 |
| OutputPower Watts | 250 | 250 | 500 | 750 |
| Peak Tourque N-m | 2.4 | 2.4 | 4.8 | 7.2 |
| Peak Current Amps | 42 | 21 | 42 | 63 |
| Torqueconstant N-m/A | 0.06 | 0.115 | 0.115 | 0.115 |
| BackEMF V/kRPM | 4.2 | 8.2 | 8.2 | 8.2 |
| Rotor inertia g·cm² | 0.8 | 0.8 | 1.6 | 2.4 |
| Body Length (L) mm | 98 | 98 | 125 | 152 |
| Mass kg | 1.85 | 1.85 | 2.6 | 4 |
| encoder | 1000P/R(2500P/R可选) | |||
Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near, or at, a stalled condition will result in motor damaged.
Note: We can also manufacture products according to customer's requirements.
Motor wiring sequence
| 编码器接线 | 电机接线 | ||||||||||||||||
| 序号 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 1 | 2 | 3 |
| 颜色 | 红 | 黑 | 黄 | 黄黑 | 绿 | 绿黑 | 蓝 | 蓝黑 | 棕 | 棕黑 | 灰 | 灰黑 | 白 | 白黑 | 黄 | 绿 | 蓝 |
| 相序 | +5V | GND | U+ | U- | V+ | V- | W+ | W- | A+ | A- | B+ | B- | Z+ | Z- | U | V | W |
Reverse potential phase sequence diagram
Technical specification of encoder
