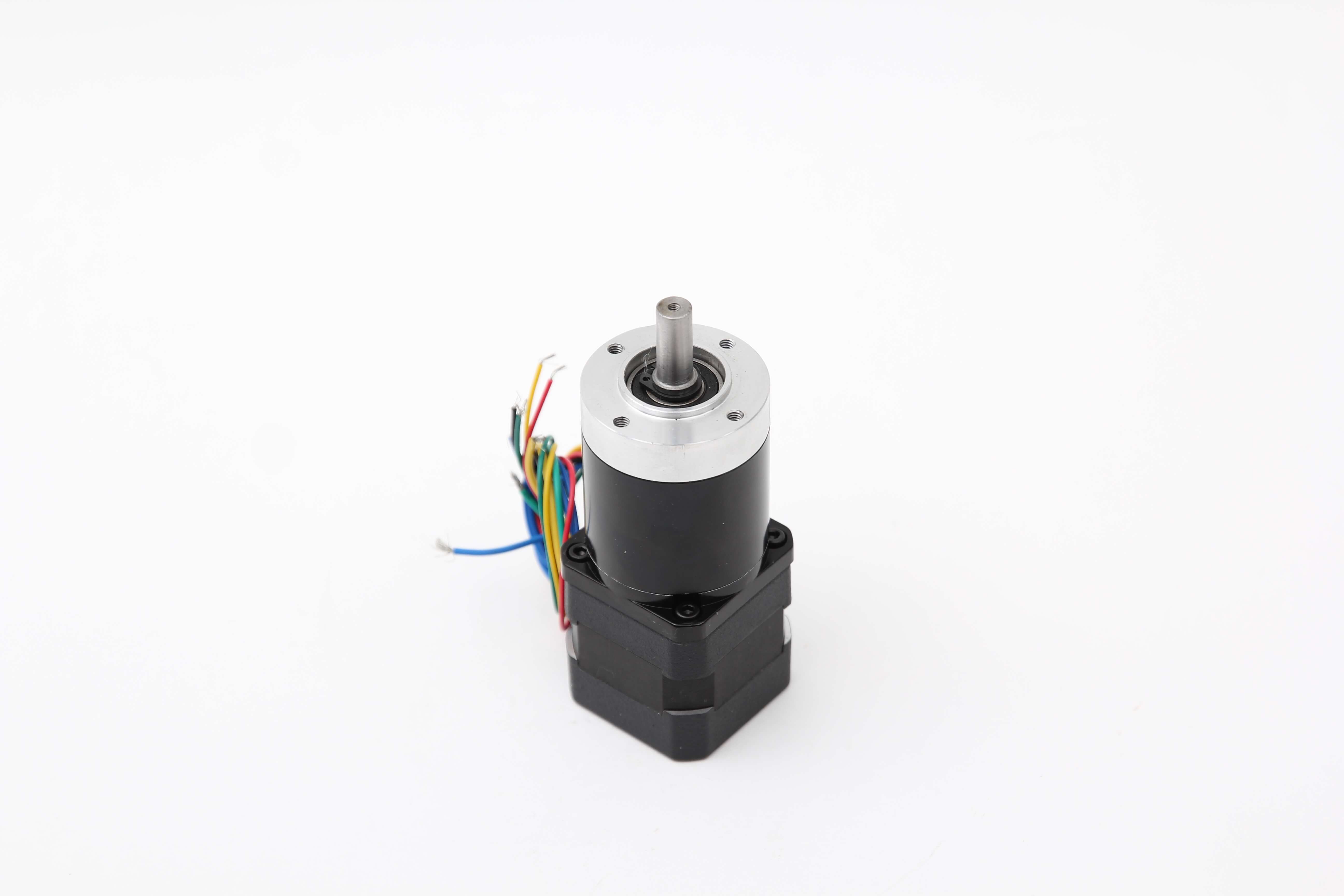

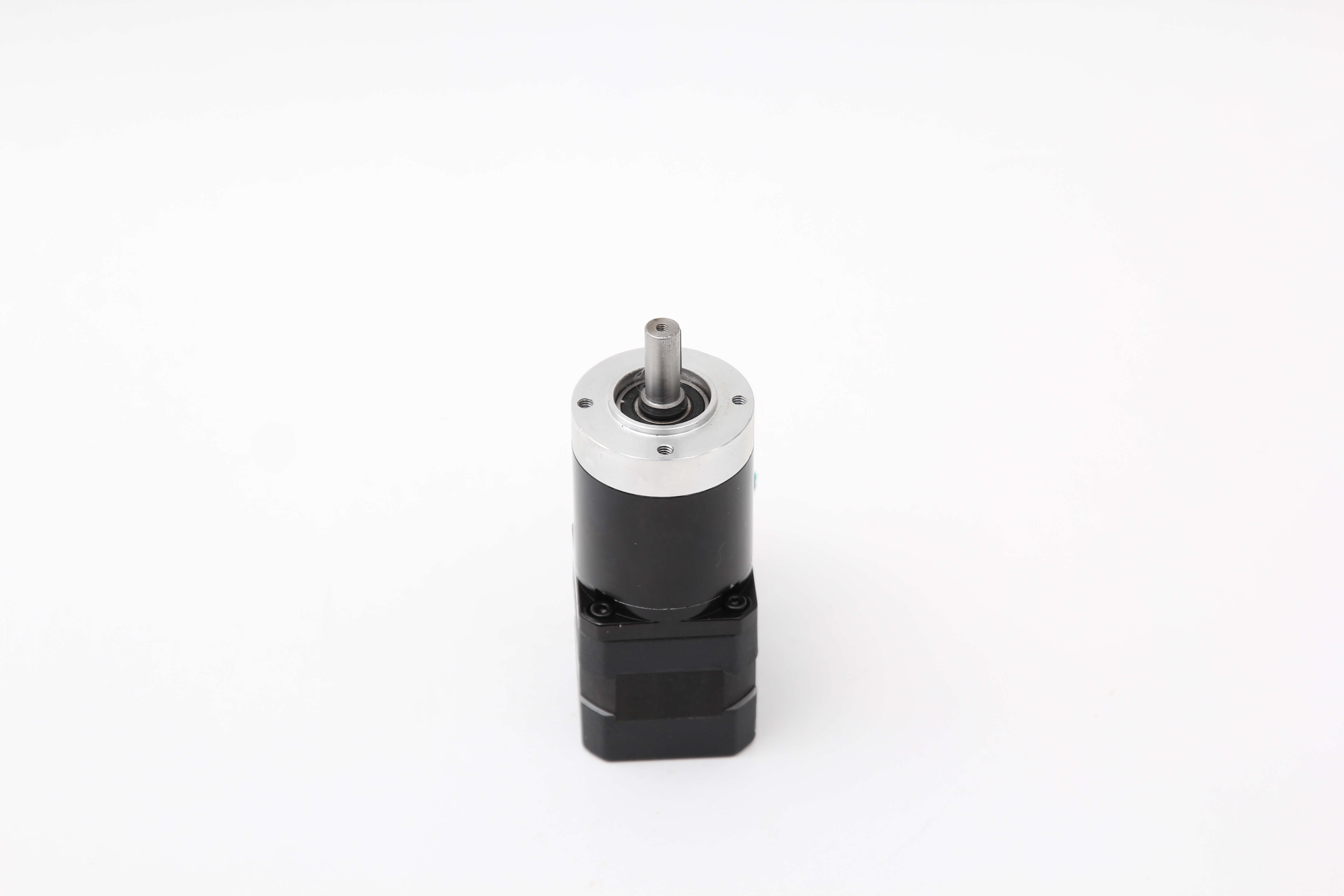

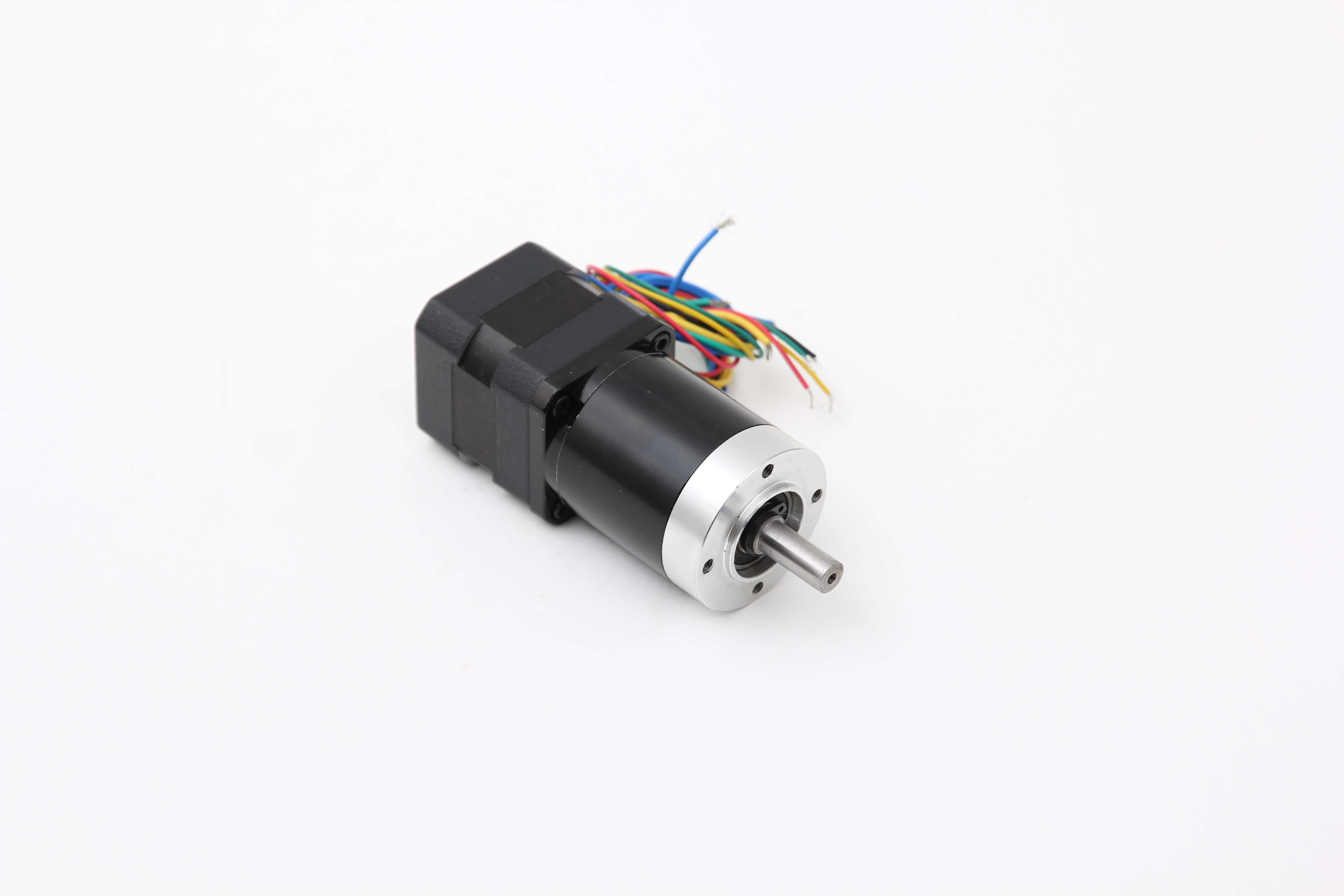

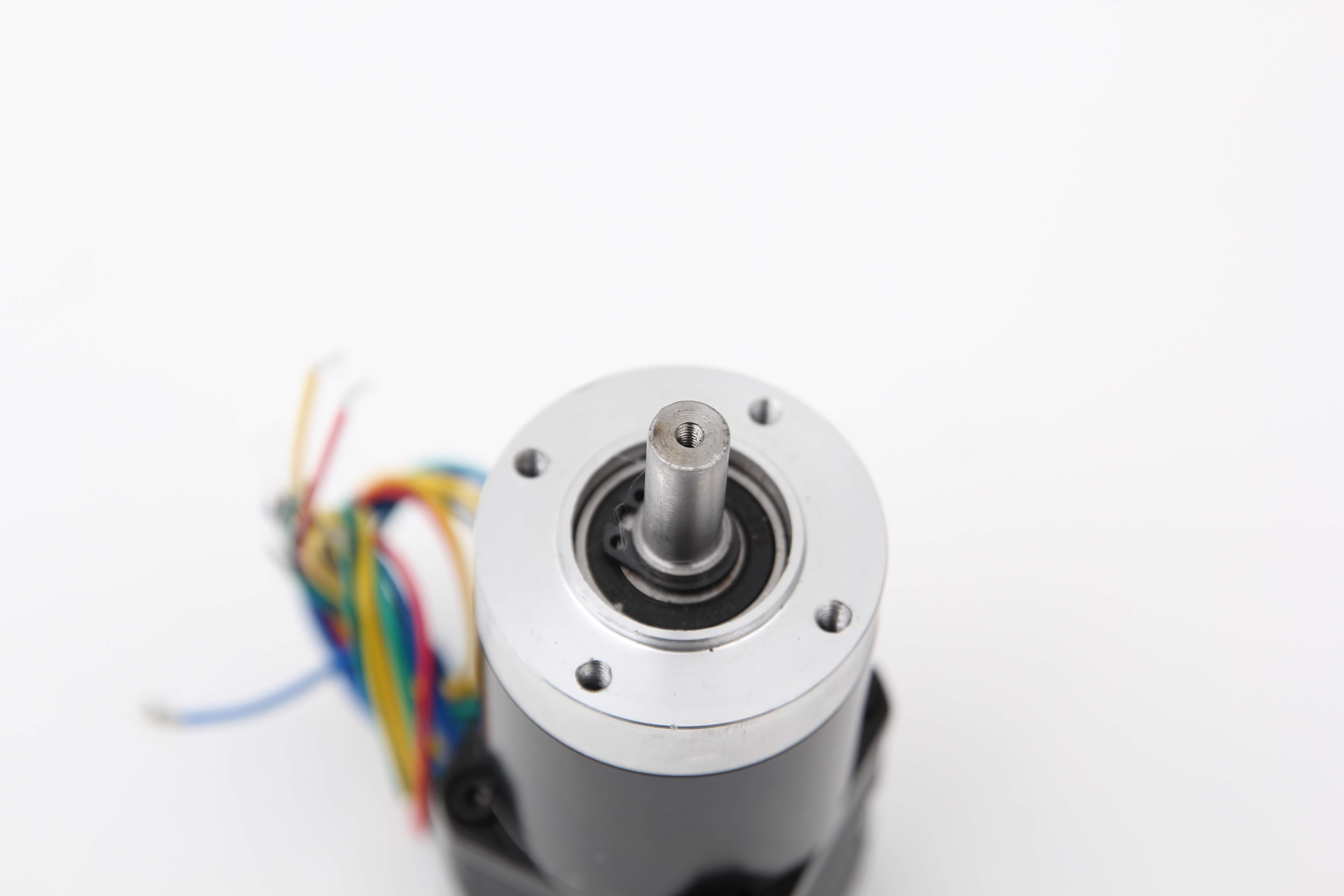

Brushless dc servo motorBrushless dcstepping motor

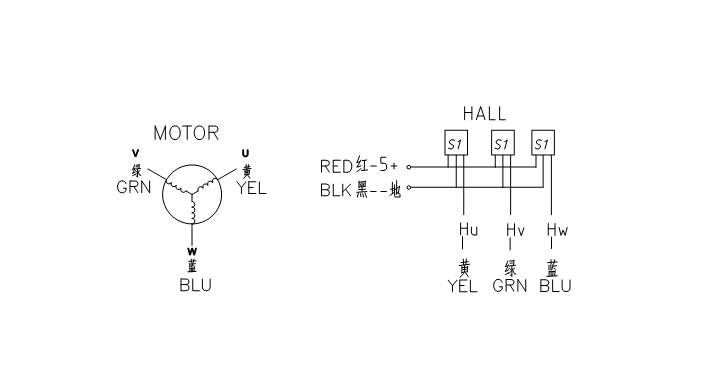

| Winding Type | Star |
| electrical degree | 120℃ electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin.500VC DC |
| Dielectric Strength | 500V AC 1 minute |
Model | 42BZ40-260-42XG | 42BZ50-260-42XG | 42BZ60-260-42XG | 42BZ80-260-42XG | 42BZ100-260-42XG |
Number of Poles | 4 | 4 | 4 | 4 | 4 |
Number of Phases | 3 | 3 | 3 | 3 | 3 |
Nominal voltage VDC | 24 | 24 | 24 | 24 | 24 |
Rated speed RPM | 3000 | 3000 | 3000 | 3000 | 3000 |
Rated Torque N-m | 0.075 | 0.1 | 0.125 | 0.185 | 0.25 |
RatedCurrent Amps | 1.3 | 1.9 | 2.4 | 3.5 | 4.7 |
OutputPower Watts | 22 | 31 | 39.2 | 58 | 78.5 |
Peak Tourque N-m | 0.21 | 0.3 | 0.3 | 0.56 | 0.75 |
Peak Current Amps | 4 | 5.7 | 7.2 | 10.2 | 14.1 |
Torqueconstant N-m/A | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 |
BackEMF V/kRPM | 2.82 | 2.82 | 2.82 | 2.82 | 2.82 |
Rotor inertia g·cm² | 28 | 38 | 48 | 72 | 96 |

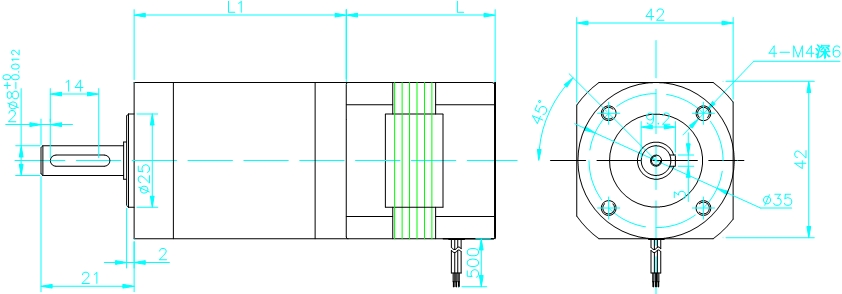

Body Length (L) mm | 40 | 50 | 60 | 80 | 100 |
Mass kg | 0.3 | 0.4 | 0.45 | 0.65 | 0.8 |
Reducer speed ratio | first level1:3 1:4 1:5 1:7 1:9 1:10 second level1:15 1:20 1:25 1:40 1:50 | ||||
Reduction box length mm | first level43.1mm second level53.6mm | ||||
| Reduction box weight | first level0.2kg second level0.3kg | ||||
